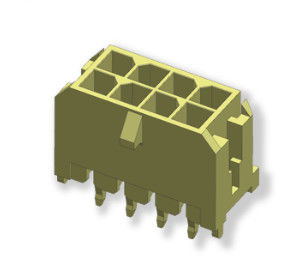

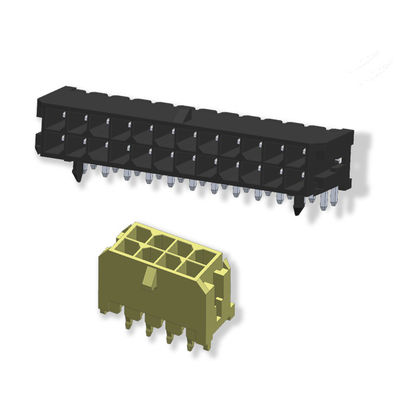

3.0mm Pitch Wafer WTB Wire To Board Connector Vertical Smt Height 9.9mm
Note:
1.Material:
1.1 Housing:High temperature thermoplastic,UL94v-0
1.2 Contact:copper alloy;Gold/Tin plated over Ni
2.Specification:
2.1 Current rating:5.0A DC(AWG#20)
2.2 Voltage rating:250V AC/DC
2.3 Dielectric withstanding woltage:1000V(AC)for 1 min.
2.4 Contact resistance:20mΩ Max.
2.5 Insulation resistance:1000MQ min.
2.6 Temperature range:-25C~85C
2.7 Applicable cable regulations:AWG#24~#20
| PIN NO |
A |
B |
| 2x1 |
|
665 |
| 2x2 |
3.00 |
9.65 |
| 2x3 |
6.00 |
12.65 |
| 2x4 |
9.00 |
15.65 |
| 2x5 |
12.00 |
18.65 |
| 2x6 |
15.00 |
21.65 |
| 2x7 |
18.00 |
24.65 |
| 2x8 |
21.00 |
27.65 |
| 2x9 |
24.00 |
30.65 |
| 2x10 |
27.00 |
33.65 |
| 2x11 |
30.00 |
36.65 |
| 2x12 |
33.00 |
39.65 |
