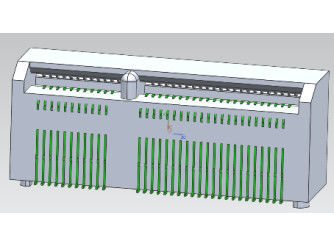

Customized Electronic Components Connectors 8.5mm Height KEY M NGFF M.2 Connector

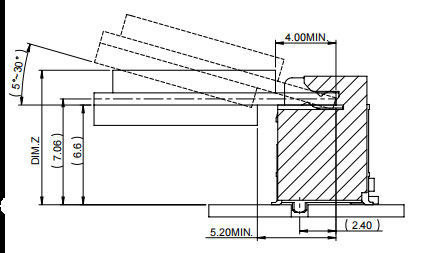

8.5mm Height KEY M NGFF M.2 Connector Next Generation Form Factor Connector Pitch 0.5mm


NOTES:
1.ELECTRICAL CHARACTERISTICS:
1.1 CONTACT CURRENT RATING:0.5 AMPERE MAX.PER PIN.
1.2 VOLTAGE RATING:50V AC.
1.3 INSULATION RESISTANCE:500 MEGAOHMS MIN.AT 500V DC;
1.4 DIELECTRIC WITHSTANDING VOLTAGE:300V AC RMS AT 60Hz,FOR 1 MINUTE.
1.5 CONTACTRESISTANCE:55 MILLIOHMS MAX.PER PIN INITIAL.
△R=20 MILLIOHMS MAX.PER PIN AFTER FULL ENVIRONMENT TESTING.
2.MECHANICAL CHARACTERISTICS:DURABILITY.60 MATING CYCLES.
3.OPERATION TEMPERATURE-40℃TO+80℃.
4.PLEASE CONTACT FOXCONN SALES REPRESENTATIVE TO VERIFY PRODUCT DETAIL &AVAILABILITY.
5.KEY LABLE "*"IS ACAPITAL LETTER PER THE PART NO.
6.RECOMMENDED PROCESS CONDITION:SMT,PEAK TEMPERATURE:260℃,10~20S.


About Us: ZSUN TECH

Brand Advantage:

ZSUN consists of a professional team with an average of over 10 year of expertise in the field of electronic components.
An advanced enterprise specializing in the research, development, production, and sales of EMC components, connectors, cables, and integrated circuits (ICs).
Professional EMC products and services, including EMC component selection, EMC simulation, EMC training, and EMC corrective testing services.

ZSUN is a senior enterprise specializing in the research and development, production and sales of EMC components, connectors, cables and Integrated Circuits (ICs). Its headquarter is located in Shenzhen. It consists of a professional team with an average of over 10 year of expertise in the field of electronic components.
The main products include: high current power inductors, Moding power choke, NR inductors, SMD power inductors, DIP inductors, Rod inductors, DC& signal common mode choke, AC common mode choke, transformers , Board-to-board connectors, wire-to-board connectors, communication interfaces, terminals, European connectors, crimp terminals and high-speed connectors, etc., are widely used in industrial control, automotive electronics, medical electronics, new energy motors, communication equipment , digital power amplifier, financial electronics, power system, cables, Integrated Circuits (ICs) and other fields.
ZSUN is committed to build a one-stop electronic components supply platform, allowing customers to enjoy the most professional EMC products and services, namely EMC components selection, EMC simulation, EMC training and EMC rectification &testing services. With advanced management system, strong development capabilities and excellent products Quality and perfect service, ZSUN has become a supplier of electronic components for many well-known enterprises at home and abroad.
