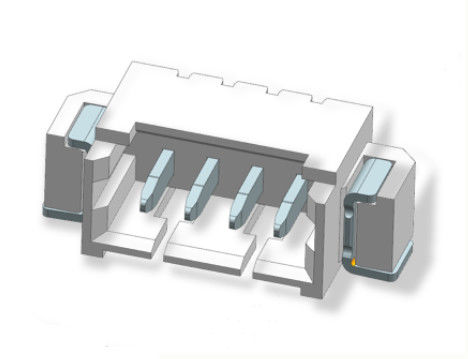

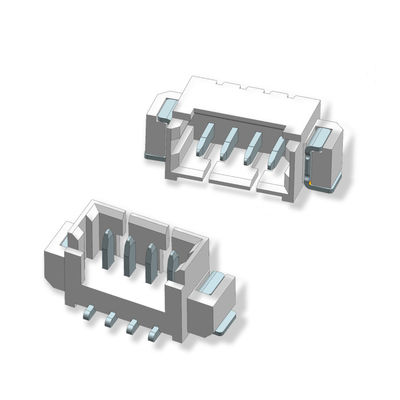

Horizontal High Current Wire To Board Connector Smt Height 3.5mm

Product Details:

Place of Origin:	China
Brand Name:	WINSHOR
Certification:	ROHS,SGS,ISO
Model Number:	WF12501-0XX-R00X02

Payment & Shipping Terms:

Minimum Order Quantity:	Customize
Packaging Details:	Reel
Delivery Time:	1-3 weeks
Payment Terms:	T/T

Contact Now

All Products

Power Inductors (36)

Thermal Interface Materials (12)

FPGA IC (2)

Board to Board Connectors (14)

IC Chips (496)

Common Mode Chokes (38)

Ferrite Core Ring (6)

FPC Connectors (10)

USB Connectors (9)

EMC Components (13)

Electronic Components Connectors (23)

EMC Materials (12)

EMI EMC Testing (6)

Detailed Product Description

Pitch:	1.25mm	Pins:	2-20PINS
Height:	3.5mm	HOUSING:	HIGH-TEMP THERMOPLASTIC UL94V-O,COLOR:NATURAL
TERMINAL:	COPPER ALLOY,PLATNG:GOLD FLASH	SMT:	Horizontal Smt
Current Rating:	1.0A	Temperature Range:	-25C~85C
Highlight:	Horizontal High Current Wire To Board Connector , High Current Wire To Board Connector

1.25mm Pitch WTB Wafer Wire To Board Connector Horizontal Smt Height 3.5mm

Horizontal High Current Wire To Board Connector Smt Height 3.5mm 0

2.6 Temperature range:-25C~85C

PIN	A	B	C	D	E
2	1.25	2.35	3.05	7.25	7.45
3	2.50	3.60	4.30	8.50	8.70
4	3.75	4.85	5.55	9.75	9.95
5	5.00	6.10	6.80	11.00	11.20
6	6.25	7.35	8.05	12.25	12.45
7	7.50	8.60	9.30	13.50	13.70
8	8.75	9.85	10.55	14.75	14.95
9	10.00	11.10	11.80	16.00	16.20
10	11.25	12.35	13.05	17.25	17.45
11	12.50	13.60	14.30	18.50	18.70
12	13.75	14.85	15.55	19.75	19.95
13	5.00	16.10	6.80	21.00	21.20
14	16.25	17.35	18.05	22.25	22.45
15	17.50	18.60	19.30	23.50	23.70
16	18.75	19.85	20.55	24.75	24.95
17	20.00	21.10	21.80	26.00	26.20
18	21.25	22.35	23.05	27.25	27.45
19	22.50	23.60	24.30	28.50	28.70
20	23.75	24.85	25.55	29.75	29.95
