Vertical Wire To Board Connector 2 Pin - 30 Pin 1.0mm Pitch Height 4.4mm

Product Details:

Place of Origin:	China
Brand Name:	WINSHOR
Certification:	ROHS,SGS,ISO
Model Number:	WF10001-0XX-R00X01

Payment & Shipping Terms:

Minimum Order Quantity:	Customize
Packaging Details:	Reel
Delivery Time:	1-3 weeks
Payment Terms:	T/T

Contact Now

All Products

Power Inductors (36)

Thermal Interface Materials (12)

FPGA IC (2)

Board to Board Connectors (14)

IC Chips (496)

Common Mode Chokes (38)

Ferrite Core Ring (6)

FPC Connectors (10)

USB Connectors (9)

EMC Components (13)

Electronic Components Connectors (23)

EMC Materials (12)

EMI EMC Testing (6)

Detailed Product Description

Pitch:	1.0mm	Pins:	2-30PINS
Height:	4.4mm	HOUSING:	HIGH-TEMP THERMOPLASTIC UL94V-O,COLOR:NATURAL
TERMINAL:	COPPER ALLOY,PLATNG:GOLD FLASH	SMT:	Vertical Smt
Current Rating:	0.5A	Temperature Range:	-25C~85C
Highlight:	Vertical Wire To Board Connector 2 Pin , Wire To Board Connector 2 Pin

WTB 1.0mm Pitch Wafer Wire To Board Connector Vertical Smt Height 4.4mm

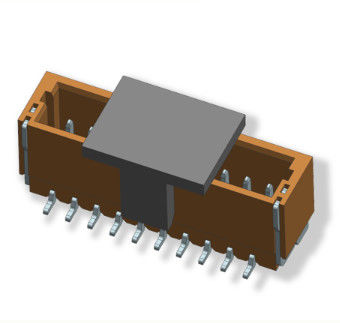

Vertical Wire To Board Connector 2 Pin - 30 Pin 1.0mm Pitch Height 4.4mm 0

Note:
1.Material:
1.1 Housing/Cover:High temperature thermoplastidUL94v-0
1.2 Contact:copper alloy;
Gold/Tin plated over Ni
1.3 Solder tab:copper alloyTin plated over Ni
2.Specification:
2.1 Current rating:0.5A DC
2.2 Voltage rating:50V AC/DC
2.3 Dielectric withstanding woltage:500V(AC)for 1 min.
2.4 Contact resistance:30m?Max.
2.5 Insulation resistance:800MΩ min.
2.6 Temperature range:-25C~85℃

NO.	A	B	C
2	1.00	2.50	4.00
3	2.00	3.50	5.00
4	3.00	4.50	6.00
5	4.00	5.50	7.00
6	5.00	6.50	8.00
7	6.00	7.50	9.00
8	7.00	8.50	10.00
9	8.00	9.50	11.00
10	9.00	10.50	12.00
11	10.00	11.50	13.00
12	11.00	12.50	14.00
13	12.00	13.50	15.00
14	13.00	14.50	16.00
15	14.00	15.50	17.00
16	15.00	16.50	18.00
17	16.00	17.50	19.00
18	17.00	18.50	20.00
19	18.00	19.50	21.00
20	19.00	20.50	22.00
21	20.00	21.50	23.00
22	21.00	22.50	24.00
23	22.00	23.50	25.00
24	23.00	24.50	26.00
25	24.00	25.50	27.00
26	25.00	26.50	28.00
27	26.00	27.50	29.00
28	27.00	28.50	30.00
29	28.00	29.50	31.00
30	29.00	30.50	32.00

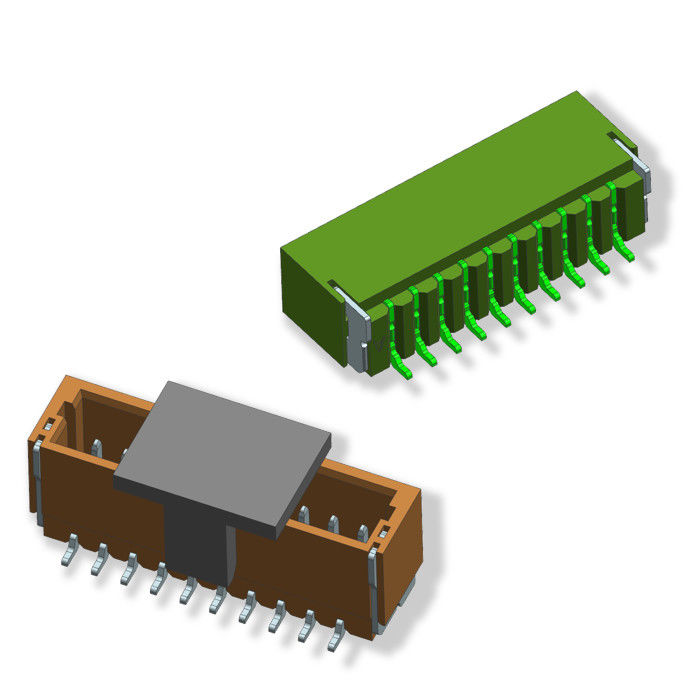

Vertical Wire To Board Connector 2 Pin - 30 Pin 1.0mm Pitch Height 4.4mm 1
