Electronic Smt Wire To Board Connector WTB 0.8mm Pitch Height 2.8mm

Product Details:

Place of Origin:	China
Brand Name:	WINSHOR
Certification:	ROHS,SGS,ISO
Model Number:	WF08001-0XX-R00X01

Payment & Shipping Terms:

Minimum Order Quantity:	Customize
Packaging Details:	Reel
Delivery Time:	1-3 weeks
Payment Terms:	T/T

Contact Now

All Products

Power Inductors (36)

Thermal Interface Materials (12)

FPGA IC (2)

Board to Board Connectors (14)

IC Chips (496)

Common Mode Chokes (38)

Ferrite Core Ring (6)

FPC Connectors (10)

USB Connectors (9)

EMC Components (13)

Electronic Components Connectors (23)

EMC Materials (12)

EMI EMC Testing (6)

Detailed Product Description

Pitch:	0.8mm	Pins:	2-30PINS
Height:	2.8mm	HOUSING:	HIGH-TEMP THERMOPLASTIC UL94V-O,COLOR:NATURAL
TERMINAL:	COPPER ALLOY,PLATNG:GOLD FLASH	SMT:	Vertical Smt
Highlight:	Electronic Smt Wire To Board Connector , Smt Wire To Board Connector WTB

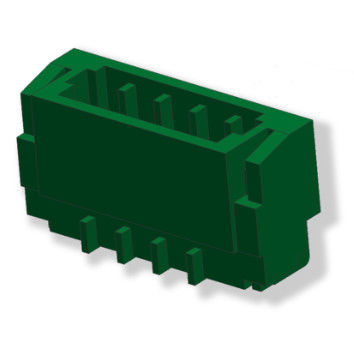

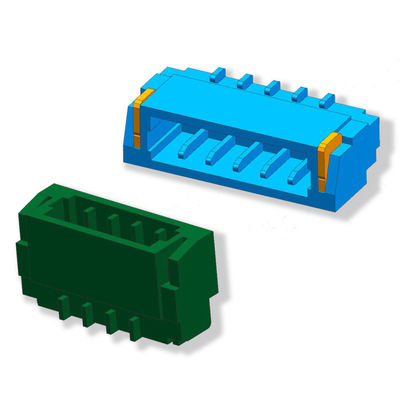

0.8mm Pitch Wafer Wire To Board WTB Connector Vertical Smt Height 2.8mm

Electronic Smt Wire To Board Connector WTB 0.8mm Pitch Height 2.8mm 0

Note:
1.Material:
1.1 Housing:High temperature thermoplastic,UL94v-0
1.2 Contact:copper alloy;
Gold/Tin plated over Ni
1.3 Solder tab:copper alloyTin plated over Ni
2.Specification:
2.1 Current rating:0.2A DC(AWG#36)
0.5A DC(AWG#32)
2.2 Voltage rating:30V AC/DC
2.3 Dielectric withstanding woltage:200V(AC)for 1 min.
2.4 Contact resistance:20mΩ Max.
2.5 Insulation resistance:100MΩ min.
2.6 Temperature range:-25°C~85°C

NO.	A	B	C	D	E
2	3.80	0.80	3.00	2.40	2.00
3	4.60	1.60	3.80	3.20	2.80
4	5.40	2.40	4.60	4.00	3.60
5	6.20	3.20	5.40	4.80	4.40
6	7.00	4.00	6.20	5.60	5.20
7	7.80	4.80	7.00	6.40	6.00
8	8.60	5.60	7.80	7.20	6.80
9	9.40	6.40	8.60	8.00	7.60
10	10.20	7.20	9.40	8.80	8.40
11	11.00	8.00	10.20	9.60	9.20
12	11.80	8.80	11.00	10.40	10.00
13	12.60	9.60	11.80	11.20	10.80
14	13.40	10.40	12.60	12.00	11.60
15	14.20	11.20	13.40	12.80	12.40
16	15.00	12.00	14.20	13.60	13.20
17	15.80	12.80	15.00	14.40	14.00
18	16.60	13.60	15.80	15.20	14.80
19	17.40	14.40	16.60	16.00	15.60
20	18.20	15.20	17.40	16.80	16.40
21	19.00	16.00	18.20	1,760	17.20
22	19.80	16.80	19.00	18.40	18.00
23	20.60	17.60	19.80	19.20	18.80
24	21.40	18.40	20.60	20.00	19.60
25	22.20	19.20	21.40	20.80	20.40
26	23.00	20.00	22.20	21.60	21.20
27	23.80	20.80	23.00	22.40	22.00
28	24.60	21.60	23.80	23.20	22.80
29	25.40	22.40	24.60	24.00	23.60
30	26.20	23.20	25.40	24.80	24.40
