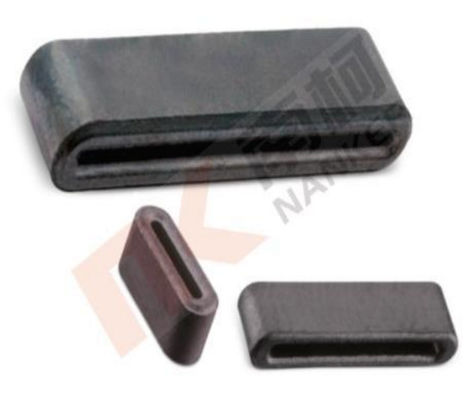

Electronic Flat Ferrite Core Ring for flexible printed circuit boards MCFS Series

Electronic Flat Ferrite Core Ring for flexible printed circuit boards MCFS Series

  • Electronic Flat Ferrite Core Ring for flexible printed circuit boards MCFS Series
  • Electronic Flat Ferrite Core Ring for flexible printed circuit boards MCFS Series
Electronic Flat Ferrite Core Ring for flexible printed circuit boards MCFS Series
Product Details:
Place of Origin: China
Brand Name: Nanker
Certification: ROHS,SGS,ISO
Model Number: MCFSXXXX-XXX
Payment & Shipping Terms:
Minimum Order Quantity: Customize
Price: Customize
Packaging Details: Reel
Delivery Time: 1-3 weeks
Payment Terms: T/T
Contact Now
All Products
Power Inductors (36)
Thermal Interface Materials (12)
FPGA IC (2)
Board to Board Connectors (14)
IC Chips (496)
Common Mode Chokes (38)
Ferrite Core Ring (6)
FPC Connectors (10)
USB Connectors (9)
EMC Components (13)
Electronic Components Connectors (23)
EMC Materials (12)
EMI EMC Testing (6)
Detailed Product Description
Application: Filter For Common Mode Interference On Thin Data Lines In Electronic Systems Type: Flexible Printed Circuit Boards
Material: Core Material: NiZn For Wideband Noise Suppression (~1 MHz - 1 GHz) Feature: Easy Solution To Filter Interference On Flexible Printed Circuit Boards Or Thin Ribbon Cable
Highlight:

Flat Ferrite Core Ring

,

Electronic Ferrite Core Ring

,

Flat Ferrite Core

Ferrite Flat Magnetic Core NiZn Flat Shape EMI Filter Bare Core MCFS Series

Electronic Flat Ferrite Core Ring for flexible printed circuit boards MCFS Series 0

Feature

Easy solution to filter interference on flexible printed circuit boards or thin ribbon cable
Core material: NiZn for wideband noise suppression (~1 MHz - 1 GHz)

Application

Filter for common mode interference on thin data lines in electronic systems
Especially suitable for flexible printed circuit boards



Part No. Size
A B C D E		 Z @25MHz
1 turn(Ω)		 Z @100MHz
1 turn(Ω)
MCFS0702-9R0 7.00 5.00 0.70 3.00 2.30 9 20
MCFS1302-7R0 13.50 11.00 0.50 4.00 2.00 7 19
MCFS1302-100 13.50 11.00 0.50 6.00 2.00 10 23
MCFS1302-150 13.50 11.00 0.50 10.00 2.00 15 32
MCFS1605-280 16.00 11.50 0.50 8.00 5.00 28 64
MCFS1605-420 16.00 11.50 0.50 12.00 5.00 42 79
MCFS1605-710 16.00 11.50 0.50 20.00 5.00 71 127
MCFS1502-7R0 15.50 13.00 0.50 4.00 2.00 7 20
MCFS1506-9R0 15.50 13.00 0.50 6.00 2.00 9 23
MCFS1502-130 15.50 13.00 0.50 10.00 2.00 13 31
MCFS2105-220 21.00 17.00 0.80 8.00 5.00 22 50
MCFS2405-300 24.50 20.00 0.50 12.00 5.00 30 65
MCFS2303-230 23.00 20.00 0.70 12.00 3.00 23 58
MCFS2405-500 24.50 20.00 0.50 20.00 5.00 50 103
MCFS2805-600 28.50 24.00 0.80 22.00 5.38 60 130
MCFS3105-260 31.00 27.00 0.50 12.00 5.00 26 66
MCFS3103-250 31.00 27.00 0.70 12.00 3.00 25 80
MCFS3205-240 32.00 28.00 0.80 8.00 5.00 24 74
MCFS4605-230 46.00 41.50 0.50 12.00 5.00 23 65
MCFS5605-230 56.00 52.00 0.50 12.00 5.00 23 66

About Us: ZSUN TECH

Brand Advantage:

ZSUN consists of a professional team with an average of over 10 year of expertise in the field of electronic components.
An advanced enterprise specializing in the research, development, production, and sales of EMC components, connectors, cables, and integrated circuits (ICs).
Professional EMC products and services, including EMC component selection, EMC simulation, EMC training, and EMC corrective testing services.

ZSUN is a senior enterprise specializing in the research and development, production and sales of EMC components, connectors, cables and Integrated Circuits (ICs). Its headquarter is located in Shenzhen. It consists of a professional team with an average of over 10 year of expertise in the field of electronic components.
The main products include: high current power inductors, Moding power choke, NR inductors, SMD power inductors, DIP inductors, Rod inductors, DC& signal common mode choke, AC common mode choke, transformers , Board-to-board connectors, wire-to-board connectors, communication interfaces, terminals, European connectors, crimp terminals and high-speed connectors, etc., are widely used in industrial control, automotive electronics, medical electronics, new energy motors, communication equipment , digital power amplifier, financial electronics, power system, cables, Integrated Circuits (ICs) and other fields.
ZSUN is committed to build a one-stop electronic components supply platform, allowing customers to enjoy the most professional EMC products and services, namely EMC components selection, EMC simulation, EMC training and EMC rectification &testing services. With advanced management system, strong development capabilities and excellent products Quality and perfect service, ZSUN has become a supplier of electronic components for many well-known enterprises at home and abroad.

Contact Us:
Sales Manager: Rose
Email: Rose@zsun-chips.com

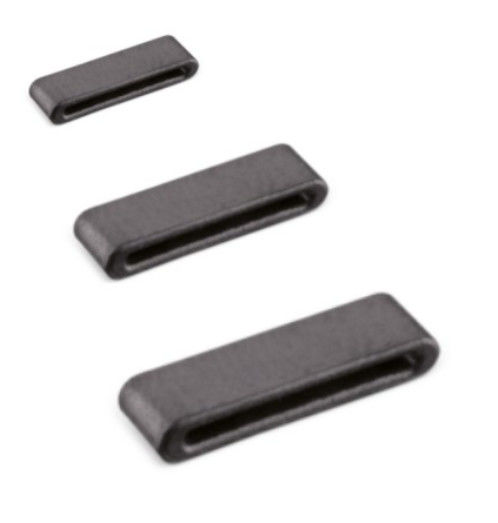

Electronic Flat Ferrite Core Ring for flexible printed circuit boards MCFS Series 1
