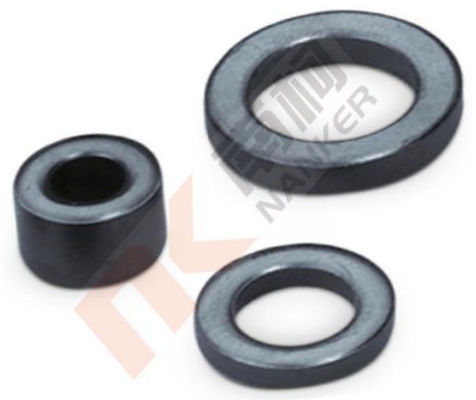

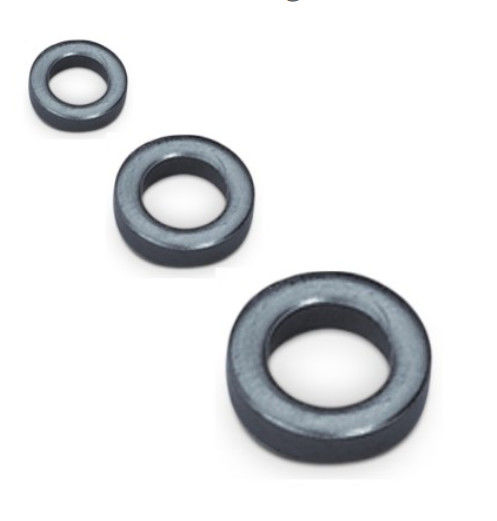

NiZn Magnetic Ferrite Core Ring EMI Filter MCRS Series For Wires

NiZn Magnetic Ferrite Core Ring EMI Filter MCRS Series For Wires

  • NiZn Magnetic Ferrite Core Ring EMI Filter MCRS Series For Wires
  • NiZn Magnetic Ferrite Core Ring EMI Filter MCRS Series For Wires
NiZn Magnetic Ferrite Core Ring EMI Filter MCRS Series For Wires
Product Details:
Place of Origin: China
Brand Name: Nanker
Certification: ROHS,SGS,ISO
Model Number: MCRSXXXX-XXX
Payment & Shipping Terms:
Minimum Order Quantity: Customize
Price: Customize
Packaging Details: Reel
Delivery Time: 1-3 weeks
Payment Terms: T/T
Contact Now
Detailed Product Description
Application: Wires, Wire-wrapping Cables, Multiconductor Wires, Coaxial Cables Type: Many Different Types And Grades Of Material (NiZn) For The Best Possible Interference Suppression
Material: NiZn Frequency: Broadband Frequency Range
Highlight:

Magnetic Ferrite Core Ring

,

NiZn Ferrite Core Ring

,

Magnetic Ferrite Ring

Ferrite Ring Magnetic Core NiZn Ring Shape EMI Filter MCRS Series

NiZn Magnetic Ferrite Core Ring EMI Filter MCRS Series For Wires 0

Feature

Ferrite core made of NiZn, a material which works in a broadband frequency range
Many different types and grades of material (NiZn) for the best possible interference suppression

Application

Wires
Wire-wrapping cables
Multiconductor wires
Coaxial cables



Part No. Size
A B C
Z @25MHz
1 turn(Ω)
Z@100MHz
1 turn(Ω)
Z @25MHz
2 turns(Ω)
Z @100MHz
2 turns(Ω)
MCRS0704-301 7.30 3.30 4.30 30 50 123 151
MCRS0908-440 9.00 5.00 8.00 44 75 134 203
MCRS0914-760 9.50 5.00 14.50 76 123 195 370
MCRS1109-680 11.50 5.00 9.00 68 126 256 405
MCRS1003-250 10.00 5.00 3.70 25 37 15 136
MCRS1005-380 10.00 5.00 5.00 38 60 105 170
MCRS1312-670 13.20 7.10 12.70 67 107 272 342
MCRS1206-360 12.70 7.90 6.35 36 102 91 175
MCRS1613-790 16.50 8.00 13.00 79 127 330 513
MCRS1616-940 16.50 8.00 16.00 94 148 395 574
MCRS2010-400 20.00 10.00 10.00 40 82 191 305
MCRS1408-410 14.00 10.00 8.00   161 215 343
MCRS1806-350 18.60 10.20 6.00 35 50 124 163
MCRS1810-550 18.60 10.20 10.00 55 65 200 265
MCRS1712-590 17.50 10.70 12.70 59 83 237 307
MCRS1908-300 19.00 11.50 8.00 30 50 40 70
MCRS1616-470 16.00 12.00 16.00 47 70 131 195
