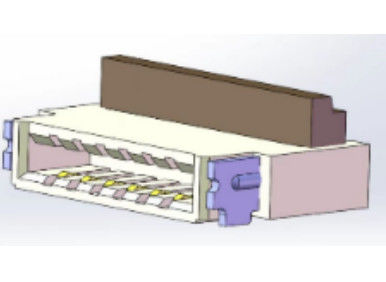

0.5mm Pitch FPC Connector Back Lock Flip SMT Height 1.0mm ZIF Right Angle

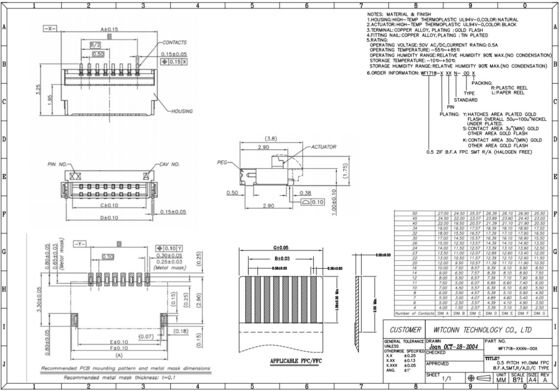

NOTES:
MATERIAL &FINISH
1.HOUSING:HIGH-TEMP THERMOPLASTIC UL94V-O,COLOR:NATURAL
2.ACTUATOR:HIGH-TEMP THERMOPLASTIC UL94V-O,COLOR:BLACK
3.TERMINAL:COPPER ALLOY,PLATING:GOLD FLASH
4.FITTING NAIL:COPPER ALLOY,PLATING:TIN PLATIED
5.RATNG:
OPERATING VOLTAGE:50V AC/DC,CURRENT RATING:0.5A
OPERATING TEMPERATURE:-55c~+85c
OPERATING HUMIDITY RANGE:RELATIVE HUMIDITY 90%MAX.(NO CONDENSATION)
STORAGE TEMPERATURE:-10C~+50C:
STORAGE HUMIDITY RANGE:RELATIVE HUMIDITY 90%MAX.(NO CONDENSANION)
| 50 |
27.00 |
24.50 |
25.57 |
26.39 |
26.10 |
26.90 |
25.50 |
| 45 |
24.50 |
22.00 |
23.07 |
23.89 |
23.60 |
24.40 |
23.00 |
| 40 |
22.00 |
19.50 |
20.57 |
21.39 |
21.10 |
21.90 |
20.50 |
| 34 |
19.00 |
16.50 |
17.57 |
18.39 |
18.10 |
18.90 |
17.50 |
| 32 |
18.00 |
15.50 |
16.57 |
17.39 |
17.10 |
17.90 |
16.50 |
| 30 |
17.00 |
14.50 |
15.57 |
16.39 |
16.10 |
16.90 |
15.50 |
| 26 |
15.00 |
12.50 |
13.57 |
14.39 |
14.10 |
14.90 |
13.50 |
| 24 |
14.00 |
11.50 |
12.57 |
13.39 |
13.10 |
13.90 |
12.50 |
| 23 |
13.50 |
11.00 |
12.07 |
12.89 |
12.60 |
13.40 |
12.00 |
| 22 |
13.00 |
10.50 |
11.57 |
12.39 |
12.10 |
12.90 |
11.50 |
| 20 |
12.00 |
9.50 |
10.57 |
11.39 |
11.10 |
11.90 |
10.50 |
| 16 |
10.00 |
7.50 |
8.57 |
9.39 |
9.10 |
9.90 |
8.50 |
| 14 |
9.00 |
6.50 |
7.57 |
8.39 |
8.10 |
8.90 |
7.50 |
| 12 |
8.00 |
5.50 |
6.57 |
7.39 |
7.10 |
7.90 |
6.50 |
| 11 |
7.50 |
5.00 |
6.07 |
6.89 |
6.60 |
7.40 |
6.00 |
| 10 |
7.00 |
4.50 |
5.57 |
6.39 |
6.10 |
6.90 |
5.50 |
| 8 |
6.00 |
3.50 |
4.57 |
5.39 |
5.10 |
5.90 |
4.50 |
| 7 |
5.50 |
3.00 |
4.07 |
4.89 |
4.60 |
5.40 |
4.00 |
| 6 |
5.00 |
2.50 |
3.57 |
4.39 |
4.10 |
4.90 |
3.50 |
| 4 |
4.00 |
1.50 |
2.57 |
3.39 |
3.10 |
3.90 |
2.50 |
| Number of Contacts |
DIM A |
DIM B |
DIM C |
DIM D |
DIM E |
DIM F |
DIM G |
|
