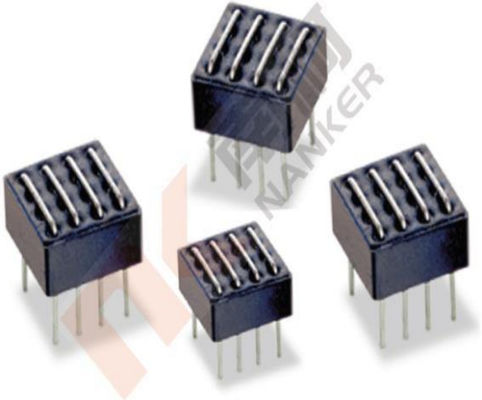

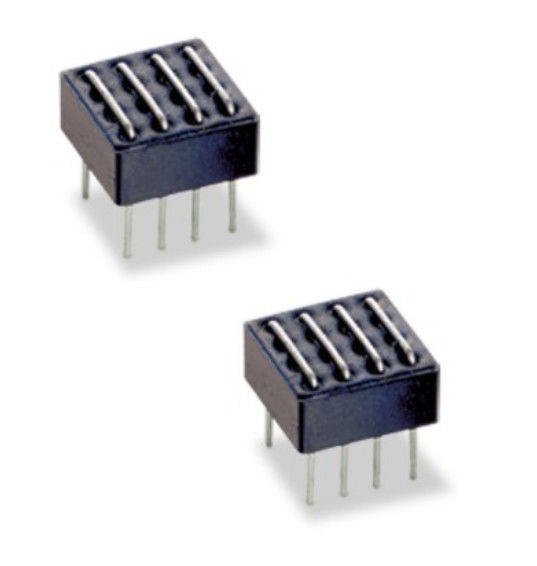

THT EMC Components High Impedance Multiline Magnetic Ferrite Bead Core FBM Series

THT EMC Components High Impedance Multiline Magnetic Ferrite Bead Core FBM Series

  • THT EMC Components High Impedance Multiline Magnetic Ferrite Bead Core FBM Series
  • THT EMC Components High Impedance Multiline Magnetic Ferrite Bead Core FBM Series
THT EMC Components High Impedance Multiline Magnetic Ferrite Bead Core FBM Series
Product Details:
Place of Origin: China
Brand Name: Nanker
Certification: ROHS,SGS,ISO
Model Number: FBMXXXX-XXX
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs/reel
Price: Customize
Packaging Details: Reel, Tray
Delivery Time: 1-3 weeks
Payment Terms: T/T
Contact Now
Detailed Product Description
Application1: Perfect Suitable For Absorption Of Common Or Differential Mode Interferences In The Field Of EMC Application2: Multi-conductor Systems And Power Electronics
Structure: High Impedance Common Mode Inductor With 2x2 Windings Made By PCB Line Connection Feature: RF Common Mode Inductor For 2, 3 Or 4 Lines In One Component
Material: Broadband Filtering Because Of The NiZn-ferrite Core
Highlight:

THT EMC Components

,

EMC Components High Impedance

,

Magnetic Ferrite Bead Core

Multiline Magnetic Bead Ferrite Bead EMI High Impedance FBM Series



THT EMC Components High Impedance Multiline Magnetic Ferrite Bead Core FBM Series 0

Feature

Broadband filtering because of the NiZn-ferrite core
High impedance common mode inductor with 2x2 windings made by PCB line connection
RF common mode inductor for 2, 3 or 4 lines in one component

Application

Perfect suitable for absorption of common or differential mode interferences in the field of EMC
Multi-conductor systems and power electronics
Filtering components of low voltage power supplies
With one turn the component performes like a 3 or 4 times common mode choke for the signal



SIZE LENGTH WIDTH HEIGHT PACKAGE
(mm) (mm) (mm)
1507 7.62 5.08 15.8 THT
1307 7.62 5.08 13.5 THT
1410 10.88 5.49 13.19 THT
1311 11.2 11.2 13 THT
1411 11.2 11.2 14.5 THT
1811 11.2 11.2 18.2 THT
811 11.2 11.2 8 THT
1611 11.2 11.2 16 THT
1510 10.88 5.49 14.5 THT


About Us: ZSUN TECH


Brand Advantage:

ZSUN consists of a professional team with an average of over 10 year of expertise in the field of electronic components.
An advanced enterprise specializing in the research, development, production, and sales of EMC components, connectors, cables, and integrated circuits (ICs).
Professional EMC products and services, including EMC component selection, EMC simulation, EMC training, and EMC corrective testing services.

ZSUN is a senior enterprise specializing in the research and development, production and sales of EMC components, connectors, cables and Integrated Circuits (ICs). Its headquarter is located in Shenzhen. It consists of a professional team with an average of over 10 year of expertise in the field of electronic components.
The main products include: high current power inductors, Moding power choke, NR inductors, SMD power inductors, DIP inductors, Rod inductors, DC& signal common mode choke, AC common mode choke, transformers , Board-to-board connectors, wire-to-board connectors, communication interfaces, terminals, European connectors, crimp terminals and high-speed connectors, etc., are widely used in industrial control, automotive electronics, medical electronics, new energy motors, communication equipment , digital power amplifier, financial electronics, power system, cables, Integrated Circuits (ICs) and other fields.
ZSUN is committed to build a one-stop electronic components supply platform, allowing customers to enjoy the most professional EMC products and services, namely EMC components selection, EMC simulation, EMC training and EMC rectification &testing services. With advanced management system, strong development capabilities and excellent products Quality and perfect service, ZSUN has become a supplier of electronic components for many well-known enterprises at home and abroad.
