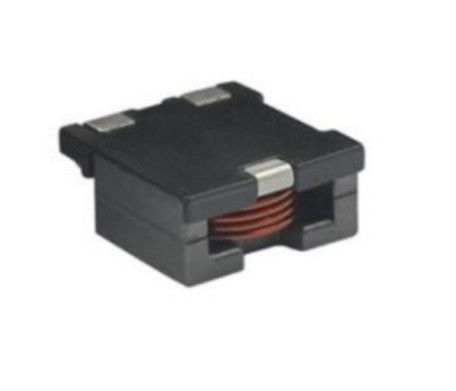

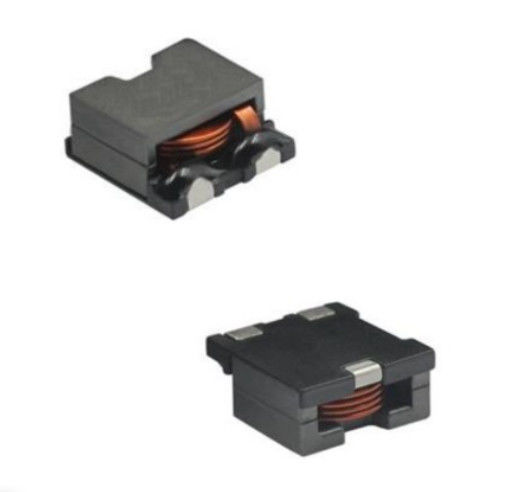

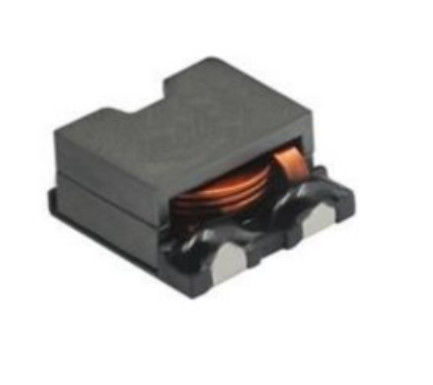

High Current SMD Shielded Power Inductor Inductance SPI22 Series

High Current SMD Shielded Power Inductor Inductance SPI22 Series

  • High Current SMD Shielded Power Inductor Inductance SPI22 Series
  • High Current SMD Shielded Power Inductor Inductance SPI22 Series
  • High Current SMD Shielded Power Inductor Inductance SPI22 Series
High Current SMD Shielded Power Inductor Inductance SPI22 Series
Product Details:
Place of Origin: China
Brand Name: Nanker
Certification: ISO,SGS,ROHS
Model Number: SPI22-XXXX-XXXM
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: negotiable
Payment Terms: T/T
Contact Now
Detailed Product Description
Test Condition: 100KHZ, 0.10V Operating Temperature: -40℃~+125℃
Saturation Current: The Actual Value Of DC Current When The Inductance Drop 20% Of Initial Value Application: DC-DC Converters, VRM Modules, POL Converters
Feature: Magnetic Shielding Structure, Excellent Resistance Structure: Assemblage Design, Sturday Structure
Feature2: Small Volume, High Current Size: Customize
Highlight:

smd rf inductor

,

smd power inductors

,

shielded rf inductor

High Current SMD Shielded Power Inductor Inductance SPI22 Series



Feature

Magnetic shielding structure, excellent resistance to electromagnetic interference;
Assemblage design, sturdy structure;
Small size, high current, low magnetic loss, low ESR, small parasitic capacitance;
Temperature rise current and saturation current are less influenced by environment;

Application

Resonant switching power supply
Audio applied filters
Energy Storage Inductors for High Efficiency DC/DC Converters

SIZE

PAD SIZE

LENGTH

WIDTH

HEIGHT

PACKAGE

(mm) (mm) (mm)
1205   12.7 12.5 5 SMD
1255   12.7 12.6 5.45 SMD
1206   12.7 12.5 6 SMD
1207   12.7 12.5 6.5 SMD
1406   14.8 14.5 6 SMD
1408   14.8 14.5 8 SMD
1408A   14.8 14.5 8 SMD
1408B   14.8 14.5 8 SMD

High Current SMD Shielded Power Inductor Inductance SPI22 Series 0
